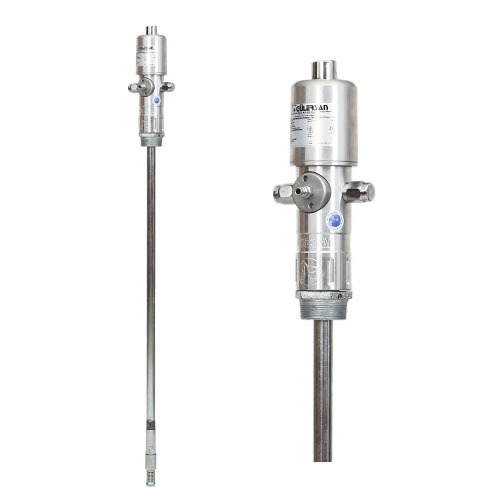

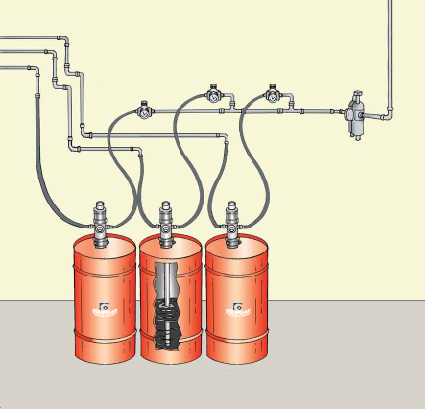

The Model 2450 Pneumatic Grease Pump is a drum-type air-operated grease pump with a 45:1 pressure ratio. It easily mounts onto standard 185 kg grease drums using a drum lid. Ideal for short-distance, high-pressure lubrication. The piston diameter is Ø62 mm. The oil pressure plate and weight compress the grease inside the drum — ensuring consistent pump feeding with high-viscosity greases and in cold environments.
Operating pressure ranges from 6 to 8 bar. Use filtered and lubricated air to maximise performance and service life. Optional accessories further enhance functionality — accessories for this model are selected separately based on system requirements.
| Model | 2450 |
| Operating Type | Pneumatic (Air-Operated) |
| Operating Pressure | 6 – 8 Bar |
| Pressure Ratio | 45:1 |
| Output | 1400 g/min |
| Capacity | 185 Kg (standard grease drum) |
| Piston Diameter | Ø62 mm |
| Outlet | 1/8" NPT |
| Hose | Not included — select separately |
| Packaging Dimensions | 13 x 14 x 128 cm |
| Weight | 7 Kg |
| Warranty | 36 Months |
Why Choose the 2450 Pneumatic Grease Pump?
