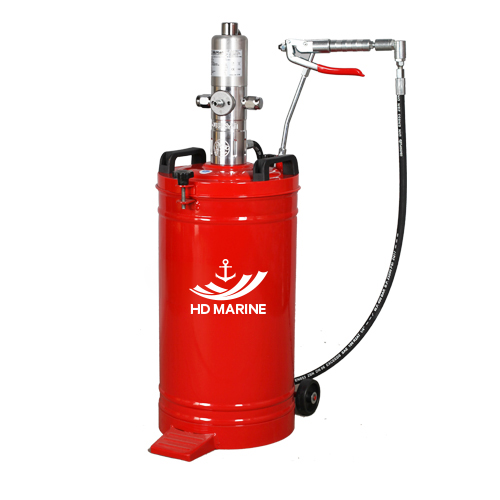

Pneumatic Grease Pump 20 Kg – Model 2220

💡 Long-distance model: The 2220 combines a 70:1 pressure ratio with a 20 kg capacity — ideal for high-pressure lubrication over longer distances with less frequent refilling.

The Model 2220 Pneumatic Grease Pump is an air-operated grease pump with a 70:1 pressure ratio and a 20 kg grease capacity. It is ideal for long-distance, high-pressure lubrication. The pump features a steel wire-reinforced hydraulic hose and a piston diameter of Ø75 mm.

The oil pressure plate and spring compress the grease inside the reservoir — ensuring consistent feeding with high-viscosity greases and in cold environments. The L-swivel joint at the grease gun inlet provides flexible and comfortable hose and gun handling. Operating pressure ranges from 6 to 8 bar. Use filtered and lubricated air to maximise performance and service life.

Technical Specifications

Model	2220
Operating Type	Pneumatic (Air-Operated)
Operating Pressure	6 – 8 Bar
Pressure Ratio	70:1
Output	1100 g/min
Capacity	20 Kg
Piston Diameter	Ø75 mm
Hose Length	2 m
Hose Size	R2 1/4"
Packaging Dimensions	31 x 42 x 84 cm
Weight	13.72 Kg
Warranty	36 Months

Why Choose the 2220 Pneumatic Grease Pump?

70:1 pressure ratio: High pressure output for long-distance lubrication lines
20 kg capacity: Extended operation with fewer refills
Ø75 mm piston: Larger piston for greater pressure generation
Steel wire-reinforced hose: Durable under sustained high-pressure conditions
L-swivel joint: Flexible and ergonomic gun and hose handling
Pressure plate & spring: Reliable feeding with thick greases and in cold conditions
36-month warranty: Full confidence in long-term product performance
