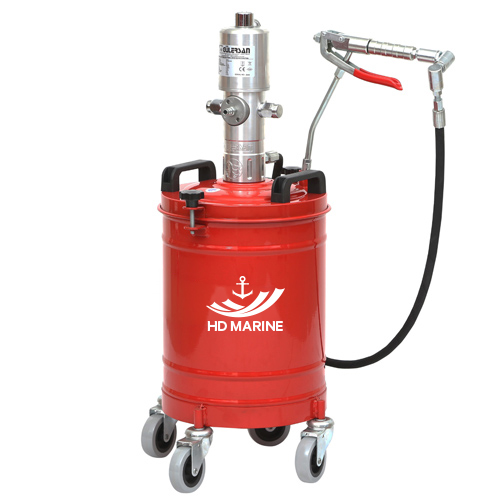

Pneumatic Grease Pump 10 Kg – 2210

ALL PRODUCTS

Pneumatic Grease Pump 10 Kg – Model 2210

💡 Higher pressure model: The 2210 features a 70:1 pressure ratio and larger Ø75 mm piston — designed for long-distance, high-pressure lubrication, compared to the 45:1 ratio of the 2110 series.

The Model 2210 Pneumatic Grease Pump is an air-operated grease pump with a 70:1 pressure ratio and a 10 kg grease capacity. It is ideal for long-distance, high-pressure lubrication tasks. Four swivel wheels allow easy positioning. The pump uses a steel wire-reinforced hydraulic hose and features a larger piston diameter of Ø75 mm.

The oil pressure plate and spring compress the grease inside the reservoir — ensuring consistent feeding with high-viscosity greases and in cold environments. The Z-swivel joint at the grease gun inlet allows comfortable hose and gun handling. Operating pressure ranges from 6 to 8 bar. Use filtered and lubricated air to maximise performance and service life.

Technical Specifications

Model	2210
Operating Type	Pneumatic (Air-Operated)
Operating Pressure	6 – 8 Bar
Pressure Ratio	70:1
Output	1100 g/min
Capacity	10 Kg
Piston Diameter	Ø75 mm
Hose Length	2 m
Hose Size	R2 1/4"
Packaging Dimensions	31 x 42 x 84 cm
Weight	13 Kg
Warranty	36 Months

Why Choose the 2210 Pneumatic Grease Pump?

70:1 pressure ratio: Superior pressure output for long-distance lubrication lines
Ø75 mm piston: Larger piston for increased pressure generation
10 kg capacity: Compact yet capable for workshop and field use
Steel wire-reinforced hose: Built for sustained high-pressure operation
4 swivel wheels: Easy manoeuvring and positioning
Pressure plate & spring: Consistent feeding in cold or high-viscosity applications
Z-swivel joint: Ergonomic and flexible gun and hose operation
36-month warranty: Long-term reliability and after-sales confidence
