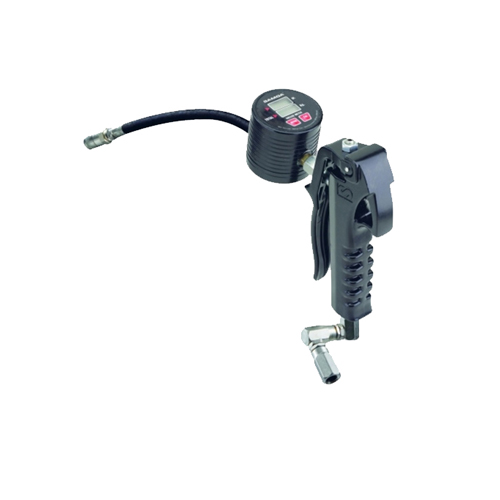

Metered Grease Gun – Model 2306S

💡 Higher accuracy than the 2306P: The 2306S delivers ±2% accuracy (vs ±3% on the 2306P) and uses a 1/8" NPT inlet instead of 1/4" BSP — making it the more precise option for demanding lubrication applications.

With the 2306S Metered Grease Gun, you can instantly and precisely see the amount of grease dispensed on its LCD display. The counter includes a resettable job total and a non-resettable grand total. Thanks to its compact size and lightweight design, it can be used as a direct replacement for a standard grease gun — and is also compatible with pneumatic, electric, or hydraulic lubrication equipment. It is an ideal choice for high-cost and precision-critical lubrication tasks.

Technical Specifications

Model	2306S
Operating Pressure	560 Bar
Inlet	1/8" NPT
Outlet	M10
Grease Nozzle	4-Jaw
Accuracy	±2%
Battery	1.5 V
Warranty	24 Months

Metered Grease Gun 2306S — Features & Advantages

±2% accuracy: Higher precision than the 2306P — ideal for critical applications
LCD display: Instant, precise readout of grease dispensed
Resettable job total: Track grease per job or per machine
Non-resettable grand total: Full audit trail for maintenance records
Multi-equipment compatible: Use with pneumatic, electric, or hydraulic systems
Standard gun replacement: Compact and lightweight for easy handling
Cost-controlled lubrication: Eliminate over-greasing and reduce material waste
24-month warranty: Reliable long-term performance
