Metered Oil Gun – 4106S

ALL PRODUCTS

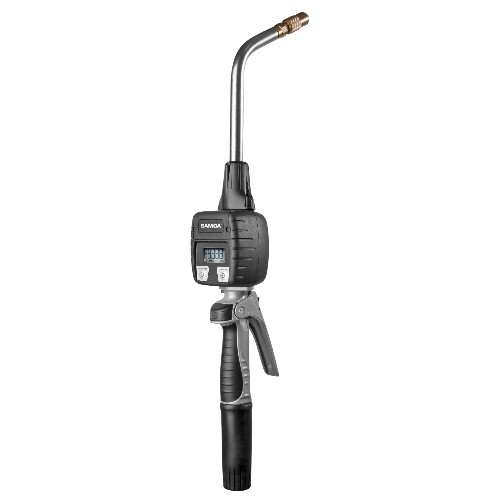

Metered Oil Gun – Model 4106S

💡 Lighter than the 4106P: The 4106S has the same specs as the 4106P — ±0.5% accuracy, IP65, 2000 cSt viscosity — but weighs 1.30 kg vs 1.40 kg, making it the lighter choice for extended handheld use.

The 4106S Electronic Metered Oil Gun is produced specifically for thin oil and features an oval gear metering system. It is a manageable and ergonomic tool for precise control and management of oil dispensing. The meter housing is made from die-cast aluminium, resistant to high pressures. It features easy calibration, an electronic reset function, low battery consumption, and an IP65 protection rating.

Technical Specifications

Model	4106S
Operating Pressure	70 Bar
Inlet	1/2" BSP
Outlet	Drip-Free Nozzle Tip
Accuracy	±0.5%
Max. Viscosity	2000 cSt
Job Counter	5 digits
Grand Total Counter	7 digits
Battery	1.5 V
Protection Class	IP65
Weight	1.30 Kg
Warranty	24 Months

Metered Oil Gun 4106S — Features & Advantages

±0.5% accuracy: Highly precise metering for cost-controlled oil dispensing
Lightweight at 1.30 kg: Lighter than the 4106P for easier extended handheld use
Oval gear metering: Reliable measurement for oils up to 2000 cSt
IP65 protection: Safe to use in wet and demanding environments
Die-cast aluminium housing: High-pressure resistant and durable
Electronic reset function: Easy job counter reset between tasks
5-digit job + 7-digit grand total: Full dispensing audit trail
Drip-free nozzle tip: Clean dispensing without waste
24-month warranty: Reliable long-term performance
