Grease Gun – 23050565

ALL PRODUCTS

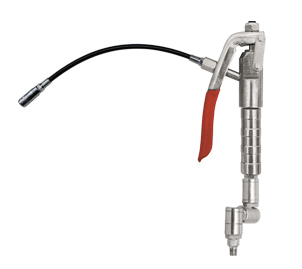

Grease Gun – Model 23050565

💡 Most complete grease gun: The 23050565 comes with both a spiral hose and a Z-swivel joint as standard — the most flexible and ready-to-use option in the grease gun range.

We manufactured the 23050565 Grease Gun to withstand demanding environments, for use with Pneumatic Grease Pumps. Compatible with any air-operated grease pump, this premium quality gun features a durable steel construction for long service life. A full trigger pull delivers continuous grease flow. The ergonomic, coated trigger ensures comfortable operation, and the ball socket shows high tolerance to grease contamination. Fine adjustment is easily made with the lock nut. Delivered complete with a spiral hose and Z-swivel joint.

Technical Specifications

Model	23050565
Operating Pressure	560 Bar
Inlet	1/8" NPT
Outlet	M10
Grease Nozzle	4-Jaw
Included Accessories	Spiral Hose + Z-Swivel Joint

Grease Gun 23050565 — Features & Advantages

Spiral hose + Z-swivel included: Maximum flexibility for any lubrication point
Universal compatibility: Works with any air-operated pneumatic grease pump
Steel construction: Built for long-lasting durability in demanding conditions
Continuous flow trigger: Full trigger pull delivers uninterrupted grease flow
Ergonomic coated trigger: Comfortable grip for extended use
High-tolerance ball socket: Resistant to grease contamination
Lock nut fine adjustment: Easy and precise top adjustment
560 bar operating pressure: Suitable for high-pressure lubrication applications
