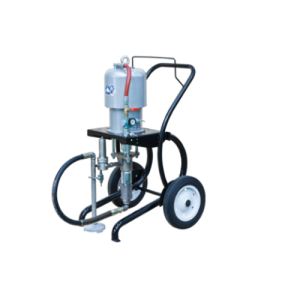

The HASCO 68:1 is a professional airless paint machine built for heavy-duty, high-pressure coating applications. With a 68:1 pressure ratio, it is engineered to handle thick, high-viscosity coatings across large industrial and marine surfaces — delivering consistent, even atomisation without the use of compressed air.
68:1 Pressure Ratio: The HASCO 68:1 multiplies incoming air pressure by 68 — providing the sustained high-pressure output required for epoxies, zinc-rich primers, anti-corrosion paints, and other demanding heavy-duty coating materials.
Technical Specifications
Specification
Value
Brand / Model
HASCO 68:1
Operating Principle
Airless (high-pressure) spray
Pressure Ratio
68:1
Maximum Pressure
200 – 300 Bar
Flow Rate
1.5 – 6 l/min
Motor Power
800 – 3000 W
Voltage
220V / 380V
Inlet Diameter
½" – 1"
Hose Length
10 – 30 m
Nozzle Range
0.015 – 0.035 inch
Weight
20 – 60 kg
Application Areas
Large surface painting (walls, roofs, facades)
Industrial coating facilities
Marine & ship maintenance
Metal & steel structure painting
Anti-corrosion & epoxy coatings
Floor & concrete surface applications
Key Features
68:1 Ratio
Up to 300 Bar
No Compressed Air
220V / 380V
Fast Coverage
6 l/min Flow
Why Choose the HASCO 68:1 from Flowland?
68:1 pressure ratio: Sustained high-pressure output for thick, demanding coatings
High-pressure airless system: Up to 300 Bar for consistent, precise atomisation
Fast, even coverage: Ideal for large industrial, marine, and construction surfaces
Low paint waste: No compressed air means less overspray and better material efficiency
Flexible voltage: Available in 220V and 380V configurations
Professional support: Flowland team available for technical guidance and after-sales service
Frequently Asked Questions
The 68:1 ratio means the pump delivers 68 times the incoming air inlet pressure as fluid output pressure. For example, with 5 Bar of air supply, the HASCO 68:1 generates approximately 340 Bar of fluid pressure — making it well suited to thick protective coatings, epoxies, zinc-rich primers, and high-viscosity materials.
An airless paint machine atomises coating material at high pressure through a precision nozzle — without using compressed air. This results in fast, even surface coverage, minimal overspray, reduced paint waste, and superior film quality compared to conventional air spray equipment.
The HASCO 68:1 is used for large surface painting, industrial facility coating, marine and ship surface maintenance, metal and steel structure painting, anti-corrosion epoxy applications, and floor and concrete coating — wherever high output pressure and reliable performance are required.
The HASCO 68:1 handles a wide range of materials — from standard emulsions and lacquers to thick epoxies, zinc-rich primers, anti-corrosion paints, and other high-viscosity industrial coatings that require sustained high-pressure output for proper atomisation.
The HASCO 68:1 supports nozzles from 0.015 to 0.035 inch. Heavier coatings require larger nozzle openings to maintain the required flow rate and spray pattern. Contact Flowland for a nozzle recommendation matched to your specific coating material and application requirements.
For questions about the HASCO 68:1, spare parts, nozzle selection, or technical consultation — please contact our professional team. We are happy to help find the right solution for your project.
