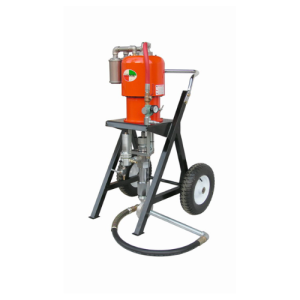

The HANDOK 68:1 is a professional airless paint machine designed for high-pressure coating applications. Operating without compressed air, it atomises paint through a high-pressure pump system to deliver fast, even, and consistent coverage across large industrial and marine surfaces.
68:1 Ratio: The 68:1 pressure ratio means the HANDOK delivers 68 times the air inlet pressure as hydraulic output pressure — making it particularly suited to heavy-duty coatings, thick epoxies, and anti-corrosion paints on demanding surfaces.
Technical Specifications
Specification
Value
Operating Principle
Airless (high-pressure) spray
Pressure Ratio
68:1
Maximum Pressure
200 – 300 Bar
Flow Rate
1.5 – 6 l/min
Motor Power
800 – 3000 W
Voltage
220V / 380V
Inlet Diameter
½" – 1"
Hose Length
10 – 30 m
Nozzle Range
0.015 – 0.035 inch
Weight
20 – 60 kg
Application Areas
Large surface painting (walls, roofs, facades)
Industrial coating facilities
Marine & ship maintenance
Metal & steel structure painting
Floor & concrete surface applications
Anti-corrosion & epoxy coatings
Key Features
68:1 Ratio
Up to 300 Bar
No Compressed Air
220V / 380V
Fast Coverage
6 l/min Flow
Why Choose the HANDOK 68:1 from Flowland?
68:1 pressure ratio: Handles thick, heavy-duty coatings with ease
High-pressure airless system: Up to 300 Bar for consistent atomisation
Fast, even coverage: Ideal for large industrial and marine surfaces
Low paint waste: No compressed air means less overspray
Flexible voltage: Available in 220V and 380V configurations
Professional support: Flowland team available for technical guidance and after-sales
Frequently Asked Questions
The 68:1 pressure ratio means the pump delivers 68 times the incoming air pressure as hydraulic output. For example, with 6 Bar of air input, the fluid output pressure reaches approximately 408 Bar — making the HANDOK 68:1 suitable for thick coatings, epoxies, and high-viscosity materials.
An airless paint machine sprays paint at high pressure through a precision nozzle without using compressed air to atomise the coating. This delivers fast, even coverage with minimal overspray and superior film quality compared to conventional air spray systems.
The HANDOK 68:1 is used for large surface painting, industrial coating, marine and ship surface maintenance, metal and steel structure painting, floor and concrete applications, and anti-corrosion epoxy coating where high pressure and consistent output are essential.
Airless machines offer fast coverage, high efficiency, low paint waste, consistent surface finish, and reduced overspray. The HANDOK 68:1 is particularly suited to demanding industrial environments where coating quality and productivity are critical.
The HANDOK 68:1 supports nozzles from 0.015 to 0.035 inch. Thicker coatings such as epoxy, zinc-rich primers, or anti-corrosion paints require larger nozzle openings and higher pressure. Contact Flowland for a recommendation based on your specific coating and substrate.
For questions about the HANDOK 68:1, spare parts, nozzle selection, or technical consultation — please contact our professional team. We are happy to help find the right solution for your project.
